High-Efficiency Steam-Heated Pillowcase Ironer for Industrial Laundries
HOZO’s industrial pillowcase presses provide high speed, high flatness ironing for washing plants.Our steam-heated system ensures energy-efficient operation, both faces pressed in one pass, and increased productivity in high-volume settings.
- Processing capacity of 1500-1800 pillowcases per hour
- Energy-efficient design, consuming only 180kg/h of steam
- Available in 5mm and 12mm roller thickness for varied production needs
- Constructed with 304 stainless steel for durability and hygiene
HPT-1400 Pillowcase Ironer: Specifications and When You Need One
The HPT-1400 is a 1,400 mm ironer built around pillowcases. It runs beside your main flatwork line, so sheets and duvet covers keep the big ironer while pillowcases are finished in parallel. On a 3.3 m ironer, four operators feed four pillowcases side by side and the whole cylinder is heated for items that use a fraction of it. On the HPT-1400, two operators feed two and only 1.4 m is heated.
Key specifications
- Output: up to 1,800 pillowcases per hour. Real output depends on how fast operators feed, steam pressure and fuel heat value, not on which model you buy.

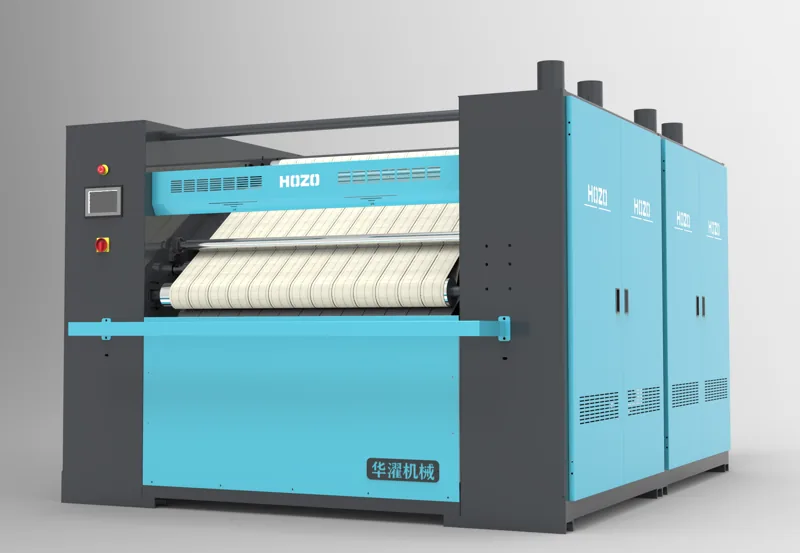

- Heating: steam at 0.4–0.6 MPa, about 180 kg/h, so no boiler upgrade is needed. A direct gas-fired version, using about 10 m³/h of gas at 0.05–0.08 MPa, is also built for laundries without a boiler.
- Electrical load: about 1.58 kWh.
- Energy: about one third of what a chest-type ironer uses for the same pillowcases (66.7% less).
- Two builds: HPT-1400 with 5 mm roller walls; HPT-1400-S with insulated 12 mm walls, 160 kg/h steam, pressure up to 0.8 MPa and steadier heat (steam only).
- Finishing: pairs with the HPZ-1400 (two parallel folds) or SZD-1400 (cross fold with stacking).
Is it right for your laundry? The HPT-1400 typically suits commercial laundries processing about 7 to 10 tonnes of linen a day. The HPT-1400-S, with its insulated rollers, holds temperature better over long shifts. If you handle only a few hundred pillowcases a day, running them on your flatwork ironer is workable. As volume grows, pillowcases start taking two to three hours of an eight-hour shift on the main line. That is when a dedicated line makes sense.
High-efficiency pillowcase ironer Technical
| Model | HPT-1400 | HPT-1400-S |
| Number of rolls | 4 | 4 |
| Roll wall thickness | 5mm | 12mm |
| Maximum working width | 1400 | 1400 |
| Treated linen | Pillowcase, etc | Pillowcase, etc |
| Conveying speed | 5-40m/min | 5-60m/min |
| Work efficiency | Up to 1,800 p/h* | Up to 1,800 p/h* |
| Roll size | ||
| Diameter | 725 | 725 |
| Width | 1400 | 1400 |
| Electrical connection | ||
| Voltage system | 3-Phase AC 380V 50Hz | 3-Phase AC 380V 50Hz |
| Motor power | 2.6kw 6P | 2.6kw 6P |
| Converter power | 1×2.2kw+1×0.8kw | 1×2.2kw+1×0.8kw |
| Total machine input | 3kw | 3kw |
| Conductor section | 4×2.5mm² | 4×2.5mm² |
| The supply voltage can be customized as required | ||
| Steam connection | ||
| Steam inlet | DN40 (1.5”) | DN40 (1.5”) |
| Steam pressure | 0.4-0.6Mpa | 0.4-0.8Mpa |
| Steam consumption | 180kg/h | 160kg/h |
| Gas heating (direct-fired build) | DN40, 0.05-0.08Mpa, 10m³/h | Steam only |
| Machine dimensions | ||
| WidthxDepthxHeight | 3300x2380x1800 | 3300x2380x1800 |
| Weight | 3200 | 4000 |
* Output depends on how fast operators feed, steam pressure and fuel heat value, not on the model.
HPT-1400: Why a Dedicated Line Beats a Full-Width Ironer
The width problem: Running pillowcases on a 3.3 m flatwork ironer means four operators feeding four cases side by side, and you are still heating the full 3.3 m of cylinder for items that occupy a fraction of it. The HPT-1400 is 1.4 m wide, needs two operators feeding two cases, and heats only what it uses.
What that saves: The machine draws about 1.58 kWh and consumes 180 kg of steam per hour (160 kg/h on the HPT-1400-S). Compared with processing the same pillowcases through a chest-type ironer, energy use is roughly one third. The saving comes from not heating width you are not using.
The real gain is parallel production: With a dedicated pillowcase line running alongside the main flatwork line, sheets and pillowcases are processed at the same time rather than competing for the same machine. That is what shortens the overall shift, more than any single efficiency figure.
Build and documentation: British Andrew spring-loaded fabric belt shafts and Belgian compression springs, in a patented structure developed by HOZO. CE certified against the Machinery, Low Voltage and EMC Directives, with ISO 9001 and ISO 14001. Lead time normally 10 to 15 days from order confirmation.
Request a Quote for High-Volume Pillowcase Processing Line
Boost your laundry efficiency today. Custom solutions available for large-scale operations. Contact now for best value.
